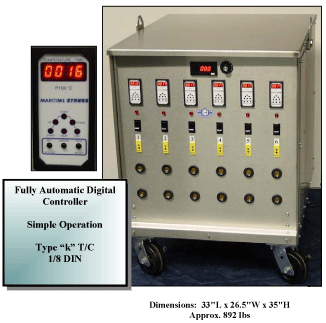

6 Way Fully Automatic Heat Treatment Console IPC2005-6

Go To Your Shopping Basket
Qty:

SPEC_SHEET

Standard Features are:
  • 75 KVA (3 phase) isolated copper wound power transformer (100% Duty Cycle): Primary Voltage: 380/415/440/480/575, 60 Hz Secondary Voltage 65/85 with thermal trips per phase to prevent overload. 50 Hz Available upon request.
  • Six fully automatic individual digital controllers (Part#: P159°C or P159°F) controls temperature rate of rise, length of hold time and rate of cool. User friendly and simple operation
  • Digital amp meter (0-200 amps) with six-channel selector switch and six current transformers which is the utmost importance for checking the current to the ceramic pad heater to make sure they are all operating.
  • 12 gauge stainless steel cabinet with swivel wheels (900 lb capacity each with brake) and two lifting lugs. **Wheels or SS mounting brackets available upon request.
  • One 340 CFM cooling fan which keeps all instrumentation and transformer cool.
  • One 110 volt auxiliary plug.
  • 100 amp - 3 phase circuit breaker with 120 volt uv release.
  • Six 200 amp contactors.
  • Six 110 volt neons and six two way on off on switches.
  • Instrument wiring tinned copper to prevent corrosion and down time.

    Note: One six way console is capable of heating an area up to 15 sq. ft. approximately using a total of 18 x 80 volt ceramic pad heaters.
