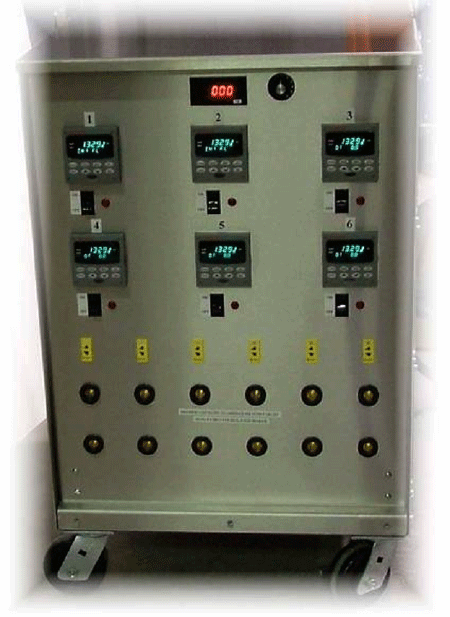

Stainless steel 6 way fully automatic heat treatment console: IP2008-6


Qty:
SPEC_SHEET

Standard Features are:
  • 75 KVA/60 kw (3 phase/100% duty cycle) isolated copper wound power transformer: Primary Voltage: 380/415/440/480/575, 60 Hz Secondary Voltage 65/85 with thermal trips per phase to prevent overload. 50 Hz Available upon request.
  • Six automatic HONEYWELL individual digital temperature controllers (PART#: DC2500-E0-0B00-200-00000-00-0)
  • Digital amp meter (0-200 amps) with six-channel selector switch and six current transformers which is the utmost importance for checking the current to the ceramic pad heater to make sure they are all operating.
  • Stainless steel cabinet with swivel wheels (900 lb capacity each with brake) and two lifting lugs. **Wheels or SS mounting brackets available upon request.
  • One 420 CFM cooling fan which keeps all instrumentation and transformer cool.
  • One 110 volt auxiliary plug.
  • 100 amp - 3 phase circuit breaker with 120 volt uv release.
  • Six 200 amp ALBRIGHT contactors.
  • Six 110 volt neons and six two way on off on switches.
  • Instrument wiring tinned copper to prevent corrosion and down time


    NOTE: An internal 12 Channel Chino Digital Recorder (Simultaneous Display/12 Channels/°C or °F) 180mm/7" Chart (model AH3725-N00) can be added upon request
