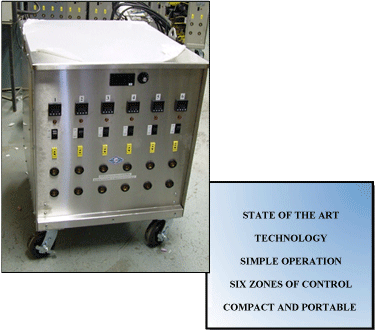

Basic Heat Treatment Console: B2005-6


Qty:
SPEC_SHEET

Standard Features are:
  • 75 KVA (3 phase) isolated copper wound power transformer: Primary Voltage: 380/415/440/480/575, 60 Hz Secondary Voltage 65/85 with thermal trips per phase to prevent overload. 50 Hz Available upon request.
  • Six digital temperature controllers (°C or °F) with ramp rate in degrees/hr to set point and capable of performing up to six different processes at a time (1/16 DIN)
  • Digital amp meter (0-200 amps) with six-channel selector switch and six current transformers.
  • Stainless steel cabinet with swivel wheels (900 lb capacity each with brake) and two lifting lugs. **Wheels or SS mounting brackets available upon request.
  • One 420 CFM cooling fan.
  • One 110 volt auxiliary plug.
  • 100 amp - 3 phase circuit breaker with 120 volt uv release.
  • Six 200 amp ALBRIGHT contactors.
  • Six 110 volt neons and six two way on off on switches.
  • Instrument wiring tinned copper to prevent corrosion and down time.
